The inline segment {:inlinesegment segmentName} function lets you insert dynamic, reusable content directly inside a sentence or a table row - not just on its own separate line. This guide explains what it is, how to set it up with sub-template (aka configFile) and a main document template, and walks through a complete working example you can use as an example.

1. What is the inline segment function?

A regular {:includesegment} function must sit on its own line, which it cannot share that line with other text or code syntax. That is fine for whole paragraphs, but it means you cannot drop a segment’s output into the middle of a sentence.

The {:inlinesegment} function on the other hand, removes that limit. It returns its result inline - right where you place it- so the output can appear mid-sentence or inside a table cell at the row level.

Why this matters:

• Insert a translated or computed value in the middle of a sentence, e.g. “John Doe is Président”. (the example here is not intended to display a full French translation, purely to illustrate how this new function is intended to be used)
• Use a segment’s output inside a table row, alongside other text.
• Keep the reusable logic in one central configFile, so the main template stays short and readable.

2. The building blocks

You will use five pieces. Keep these definitions handy as you read the walkthrough.

3. The two-file setup

You build two documents that work together:

1. The subtemplate / config file (ATH_configWordWithInlineSegment):

• defines a collection assignment that streamlines long syntax to within {collectionNameASG}
• the inline segment definition as {segmentName} that contains fuzzy code logic and statements
• holds {collectionName1ASG} that is being called upon from the main template

2. The main template (Main Template w include Segment Function via SubT):

• stores a syntax to include the sub-template;
• loops over a collection array that interated by {collectionNameASG} from the sub-template;
• declares a {collectionName1ASG} that lets the main template communicate with the inline {segmentName} that is connecting the {collectionNameASG} with its intended {segmentName};
• per-row segment connector syntax, and calls the inline segment inline.

4. Step-by-step walkthrough

Step 1 — Build the subtemplate (config file)

Give it a descriptive name, e.g. ATH_configWordWithInlineSegment. Add two things.

a) The collection assignment — pull the officers once and group them, centrally:

This takes affiliations (or resolution affiliations), keeps active Officers, excludes anyone in the outgoing affiliations, orders them by rank, and groups them by participant so each person is one group.

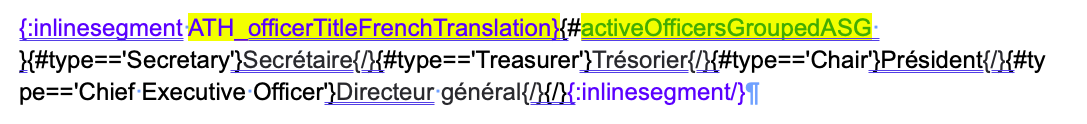

b) The inline segment definition — translate the title:

It loops the per-row group (activeOfficersGroupedASG) and prints the French translation for each officer type. This demo covers four titles (Secretary, Treasurer, Chair, CEO); you would extend the list for full coverage.

Keep it on one line:  the entire {:inlinesegment …}{:inlinesegment/} definition should stay on a single line in your template.

SCREENSHOT: the configfile uploaded to Athennian and set as a subTemplate

Step 2 — Build the main template

a) Include the config file at the very top:

This bridges the config file so its assignment and inline segment are available throughout the document. It must be at the top — if it sits lower, content above it cannot see the segment.

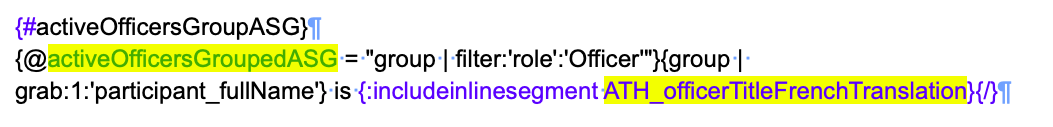

b) Loop, define the connector, and call the inline segment inline:

This loops each officer group, defines the per-row connector (activeOfficersGroupedASG), then prints the person’s full name, the word “is”, and the inline segment’s translated title — all on one line. Result: “John Doe is Président”.

Tip:  keep the {@activeOfficersGroupedASG = …} assignment on the same line as the output (as shown) so you don’t get a blank line before each officer.

SCREENSHOT: the main template showing the include box and the inline syntax

Step 3 — Upload and configure in Athennian

• Upload Files & Link: Upload the MS Word config file as a subTemplate. Then, upload the main template and attach the subTemplate in its settings to link them.

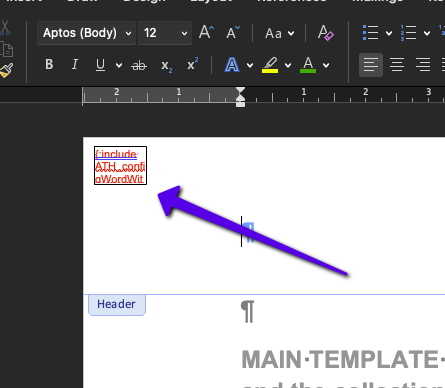

• Add Syntax to Header: In the main template's header, create a text box and insert {include subTemplateName}.

  Formatting Tips:

  1. Set the text box border to No Outline and resize it as small as possible.
  2. Optionally shrink the font size or set the font color to white. (Note: The final generated output inherits the main document's formatting, so font tweaks here won't impact the end result.)
  3. Anchor the text box in a consistent spot on the page so it’s easy to find when hovering.

SCREENSHOT: the template settings linking the subTemplate to the main template

Step 4 — Generate and check

Generate the document (or preview the expected output) and confirm each officer’s title appears inline, within the surrounding text.

5. Worked example — Silent Hill Inc.

Seed data with four officers (one person signed twice with two different titles):

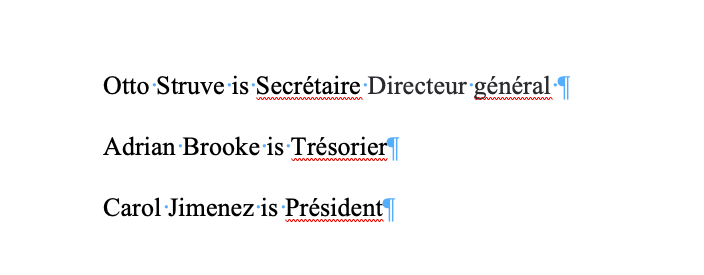

Expected output (each title populated inline):

• Otto Struve is Secrétaire Directeur général (two titles, currently back-to-back — see the limitation below)
• Adrian Brooke is Trésorier
• Carol Jimenez is Président

The key result: the translated title is populated inline — within the surrounding text, at the row level — which is exactly what the inline segment enables.

SCREENSHOT: the generated document showing officer titles populated inline

6. Quick syntax reference

7. Rules and tips (avoid common errors)

• Put the {:include …} tag at the very top of the main template.
• Keep the connector variable name identical in both files (here: activeOfficersGroupedASG).
• Keep the per-row assignment on the same line as its output to avoid extra blank lines.
• Do not put code, text, or numbers in the document’s header or footer — it can corrupt the template.

8. Current limitation

9. Questions and support

If anything doesn’t populate as expected, first re-check the assignment and sub-template names, and the include syntaxes at the top. For further help, contact your document-automation team.
